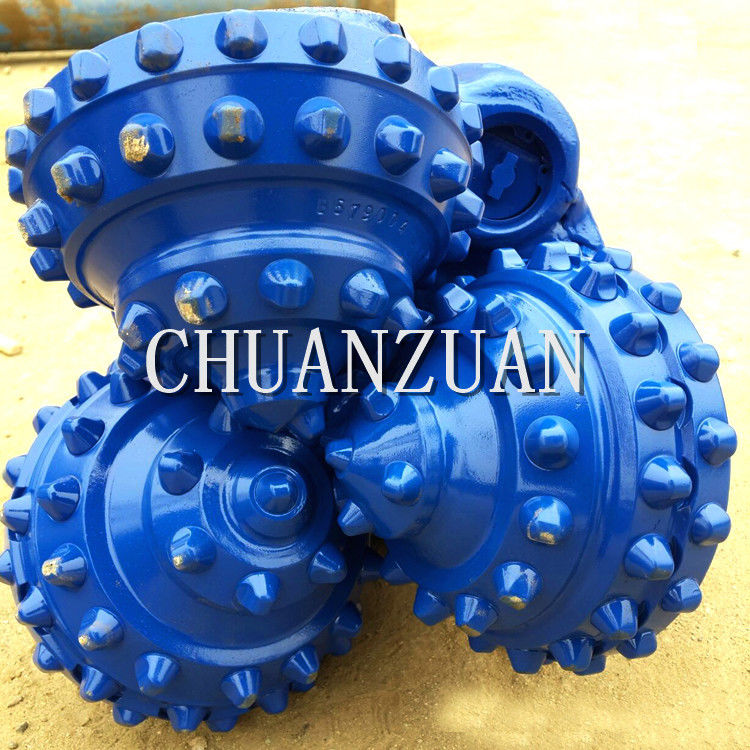

Hard Formation tci Tooth Tricone Bit 8 3/4 Inch With High Compressive Strength
Product Details:
Place of Origin: | china |
Brand Name: | chuanzuan |
Certification: | CE |
Model Number: | IADC 537 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Fumigation wooden box |
Supply Ability: | 100 |
Detail Information |
|||
Size: | 8 1/2 Inch Tci Tricone Bit | IADC Code: | 537 |
---|---|---|---|
Connection: | 4 1/2"API Reg Pin | Nozzle Qty: | 3NZ |
Make Up Torque(KN.m): | 16.3~21.7 | Rotary Speed(rpm): | 110~40 |
Bearing Type: | Sealed And Non-sealed Bearing | Machine Type: | Water Well Drilling |
Color: | Bule | ||
High Light: | tricone rock bit,tungsten carbide insert bit |
Product Description
Hard Formation Steel Tooth Tricone Bit 8 3/4 Inch With High Compressive Strength
Basical Parameter | ||
Bit Size | 8 1/2"(216MM) | |
IADC Code | 537 | |
Connection | 4 1/2"API reg pin | |
Nozzle Qty | 3NZ | |
Make up Torque(KN.m) | 16.3~21.7 | |
Operating Parameter | ||
Rotary Speed(rpm) | 110~40 | |
Weight on Bit(KN/MM) | 0.5~1.05 | |
Formation | Low compressive strength,medium hard formation with dard abrasive interlayer,like Hard shale,anhydrite,soft limestone,sandstone,dolomite with mezzanine,etc. |
Cutting Structure
The wear-resistance of the teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit.The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit
Gauge Structure
Multiple gague protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capacity and bearing life.
Bearing Structure
High precision journal bearing with two thrust faces,Balls lock the cone.Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure of the bearing are improved.and suitable for high rotary speed
Seal and Lubrication
The advanced metal seal package consists of two metal seals and two elastic energizers.Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force,and achieves the bearing seal.In the drilling,metal seals are relatively dynamic,and the energizers are static.This will improve the reliability and durability of bearing seal.The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Company Information
Hebei Yichuan Drilling Equipment Manufacturing Co., Ltd has more than 20 years manufacturing and design experience,We specialize in researching and production of TCI Tricone Bit,Steel Tooth tricone bit,PDC bit,Drag bit,HDD hole opener,Tricone bit cutter and Drilling Accessories,application fields includes oil well drilling,gas well drilling,geothermal well drilling,mining,geological survey,hydrographic survey,water well drilling,HDD pipelinesprojects,foundation projects.
Our goal is provide the best quality products and service to our customers,we have professional R&D team,domestic advanced production equipment and precision instruments Reduce the cost,Speed the drilling,Guarantee the safety is always our aim.
Win-win cooperation is our ultimate pursuit. Contact us anytime if you are looking for a drill bit manufacturer.
Our Services
1 We supply good quality goods at competitive price
2 We not only have our own design but also accept customization
3 Fast and on time delivery
4 Every bit has it's quality assurance
5 Contact us anytime if you have any question with bits.
6 24 hours on time reply
