8 1/2 Inch IADC 537 Water Well Rubber Sealed Bearing Rock Drill Bit With Factory Price
Product Details:
| Place of Origin: | China |
| Brand Name: | ChuanZuan |
| Certification: | CE |
| Model Number: | IADC 537 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation free wooden box or customized according to your requirements. |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T PAYPAL |
| Supply Ability: | 2000 pieces/month |
|
Detail Information |
|||
| Name: | TCI Tricone Drill Bit | Application: | Well Drilling |
|---|---|---|---|
| Usage: | Oil Well | Size: | 8 1/2 Inch |
| Packing: | Fumigation Free Wooden Box Or Customized According To Your Requirements. | Weight: | 45 Kg |
| Volume: | 260*250*420mm | Quality: | High Level |
| High Light: | Rubber Sealed Mill Tooth Drill Bit,Bearing Rock TCI Tricone Drill Bits,Water Well Tricone Rotary Drill Bits |
||
Product Description

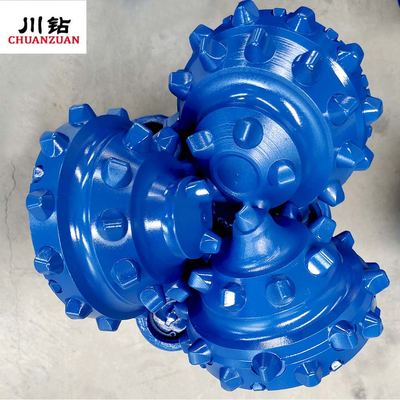

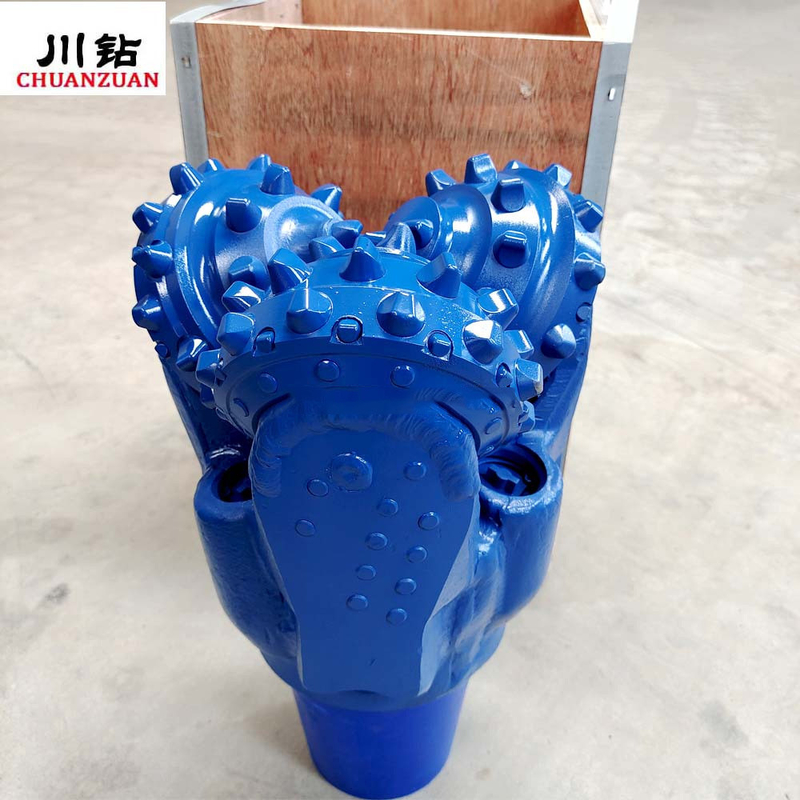

8 1/2 inch IADC 537 TCI tricone bit
Our advantage
1. who are we?
We are based in Hebei, China, start from 2016,sell to Northern Europe(20.00%),Mid East(20.00%),Domestic Market(14.00%),Western Europe(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(5.00%),North America(5.00%),Southeast Asia(4.00%),Africa(3.00%),Central America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tricone Bit,Rock Bit,PDC Bit,Drag Bit,HDD Hole Opener
4. why should you buy from us not from other suppliers?
(1)Our company promises: reasonable prices, short production time and satisfactory after-sales service
(2)Mutual development, mutual benefits
(3) We hope to cooperate with you
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Russian
More question you want to know, contact us feel free without hesitation.No matter how far from us but communication without borders.
How to choose a model
| IADC | Rock formation | WOB (KN/mm) | PRM(r/min) |
| 417/427/437 | Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone,etc. | 0.35~0.90 | 140~70 |
| 447 | Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc. | 0.37~1.00 | 140~60 |
| 517 | Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc. | 0.37~1.05 | 120~50 |
| 527 | Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc. | 0.35~1.05 | 120~50 |
| 537/547 | Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc. | 0.50~1.05 | 110~40 |
| 617/627 | High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc. | 0.50~1.05 | 80~40 |
| 637/737 | High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc. | 0.7~1.20 | 70~40 |
Cutting Structure:
High quality tungsten carbide insert with the latest technology are adopted to improve the comprehensive mechanical properties of the bit.
Gauge Structure:
Multiple gauge protection with gauge trimmers on the heel of cone,tungsten carbide insert and hard facing on the shirttail increases holding capability and bearing life.
Bearing Structure:
High precision journal bearing with two thrust faces.Balls lock the cone.Hard faced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver plated.Abrasion resistance and seizure resistance of the bearing are improved.
Seal and Lubrication:
Premium HNBR O-ring,optimal seal compression and curved seal structure can enhance the seal performance.The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application:
It can high WOB inthe conventional drilling.It is suitable for various of formations by matching cutting structure with different tooth shape,tooth density and tooth exposure height.
Company Profile
Hebei Yichuan Drilling Equipment Manufacturing Co., Ltd has more than 20 years manufacturing and design experience,We specialize in researching and production of TCI Tricone Bit,Steel Tooth tricone bit,PDC bit,Drag bit,HDD hole opener,Tricone bit cutter and Drilling Accessories,application fields includes oil well drilling,gas well drilling,geothermal well drilling,mining,geological survey,hydrographic survey,water well drilling,HDD pipelines projects,foundation projects.
Our Certificates
Product Packing And Shipping
